IRSM807-105MH

In Stock: 1,407

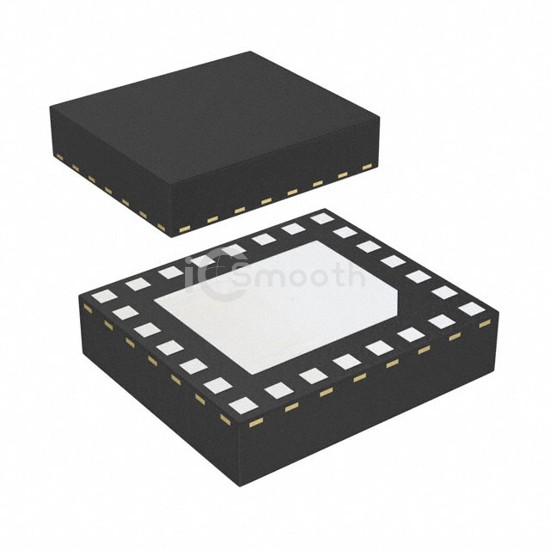

IRSM807-105MH - Infineon Technologies - PMIC - Full, Half-Bridge Drivers
REF: IRSM807-105MH Infineon Technologies
IRSM807-105MH

Infineon Technologies

IC MOTOR DRIVER 500V QFN

IRSM807-105MH is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC MOTOR DRIVER 500V QFN. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), voltage - supply 13.5V ~ 16.5V, package / case 31-PowerVQFN.

Datasheet Request a Quote

In Stock: 1,407

Tiered Pricing USD
1+ $5.9300 —
10+ $4.0040 -32%
260+ $2.8595 -52% BEST

Specifications

17 parameters
Product StatusActive
Output ConfigurationHalf Bridge
ApplicationsAC Motors
InterfaceLogic
Load TypeInductive
TechnologyUMOS
Rds On (Typ)580mOhm
Current - Output / Channel10A
Current - Peak Output-
Voltage - Supply13.5V ~ 16.5V
Voltage - Load400V (Max)
Operating Temperature150°C (TJ)
FeaturesBootstrap Circuit
Fault ProtectionUVLO
Mounting TypeSurface Mount
Package / Case31-PowerVQFN
Supplier Device Package31-PQFN (8x9)
