Name: IRSM516-076DA
Brand: Infineon Technologies
SKU: IRSM516-076DA
Availability: InStock

REF: IRSM516-076DA Infineon Technologies

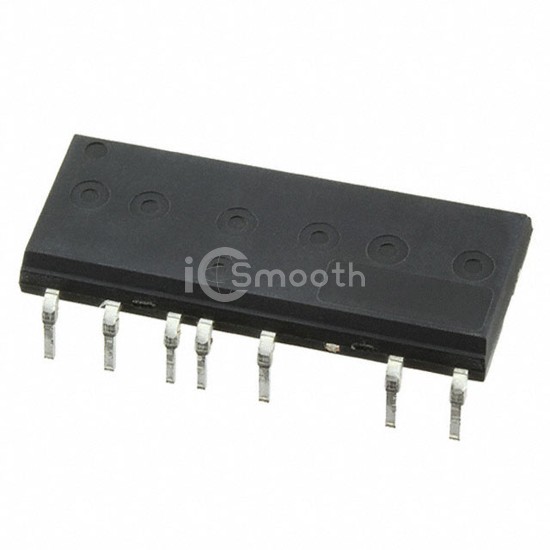

IRSM516-076DA

IC MICRO MCM DRIVER 23DIP

IRSM516-076DA is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC MICRO MCM DRIVER 23DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply 13.5V ~ 16.5V, package / case 32-PowerDIP Module, 23 Leads.

Datasheet Request a Quote

In Stock: 5,837

Specifications

17 parameters

Product Status	Discontinued at Digi-Key
Output Configuration	Half Bridge (3)
Applications	AC Motors
Interface	Logic
Load Type	Inductive
Technology	IGBT
Rds On (Typ)	-
Current - Output / Channel	4A
Current - Peak Output	15A

Voltage - Supply	13.5V ~ 16.5V
Voltage - Load	480V (Max)
Operating Temperature	-40°C ~ 150°C (TJ)
Features	Bootstrap Circuit
Fault Protection	UVLO
Mounting Type	Through Hole
Package / Case	32-PowerDIP Module, 23 Leads
Supplier Device Package	23-DIP
