IRSM515-035PA

In Stock: 3,154

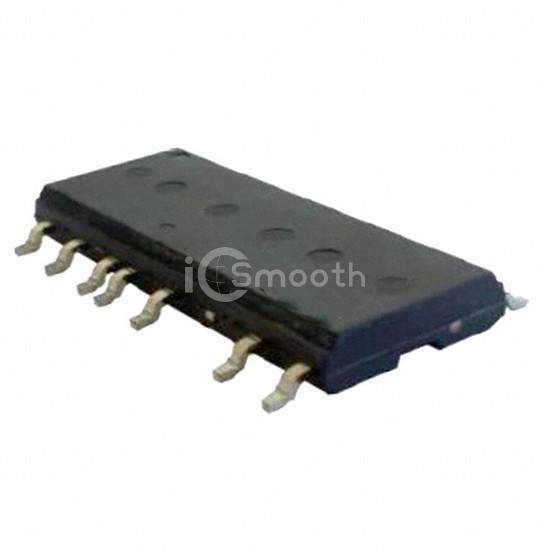

IRSM515-035PA - Infineon Technologies - PMIC - Full, Half-Bridge Drivers
REF: IRSM515-035PA Infineon Technologies
IRSM515-035PA

Infineon Technologies

IC MOTOR DRIVER 600V 23SOP

IRSM515-035PA is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC MOTOR DRIVER 600V 23SOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 13.5V ~ 16.5V, package / case 32-PowerSMD Module, 23 Leads.

Datasheet Request a Quote

In Stock: 3,154

Specifications

17 parameters
Product StatusNot For New Designs
Output ConfigurationHalf Bridge (3)
ApplicationsAC Motors
InterfaceLogic
Load TypeInductive
TechnologyUMOS
Rds On (Typ)1.8Ohm
Current - Output / Channel2.1A
Current - Peak Output15A
Voltage - Supply13.5V ~ 16.5V
Voltage - Load400V (Max)
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesBootstrap Circuit
Fault ProtectionUVLO
Mounting TypeSurface Mount
Package / Case32-PowerSMD Module, 23 Leads
Supplier Device Package23-SOP
