IRSM506-076DA

In Stock: 1,569
IRSM506-076DA - Infineon Technologies - PMIC - Full, Half-Bridge Drivers
REF: IRSM506-076DA Infineon Technologies
IRSM506-076DA

Infineon Technologies

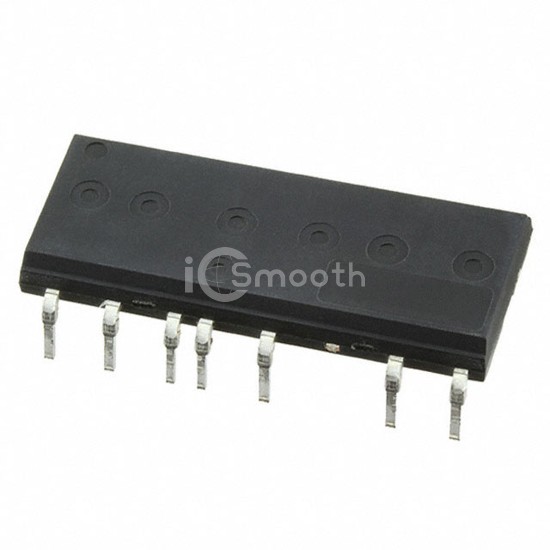

IC MICRO MCM DRIVER 23DIP

IRSM506-076DA is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC MICRO MCM DRIVER 23DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply 13.5V ~ 16.5V, package / case 32-PowerDIP Module, 23 Leads.

Datasheet Request a Quote

In Stock: 1,569

Specifications

17 parameters
Product StatusObsolete
Output ConfigurationHalf Bridge (3)
ApplicationsAC Motors
InterfaceLogic
Load TypeInductive
TechnologyIGBT
Rds On (Typ)-
Current - Output / Channel4A
Current - Peak Output15A
Voltage - Supply13.5V ~ 16.5V
Voltage - Load480V (Max)
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesBootstrap Circuit
Fault ProtectionUVLO
Mounting TypeThrough Hole
Package / Case32-PowerDIP Module, 23 Leads
Supplier Device Package23-DIP
