Name: IRSM505-084PA
Brand: Infineon Technologies
SKU: IRSM505-084PA
Availability: InStock

REF: IRSM505-084PA Infineon Technologies

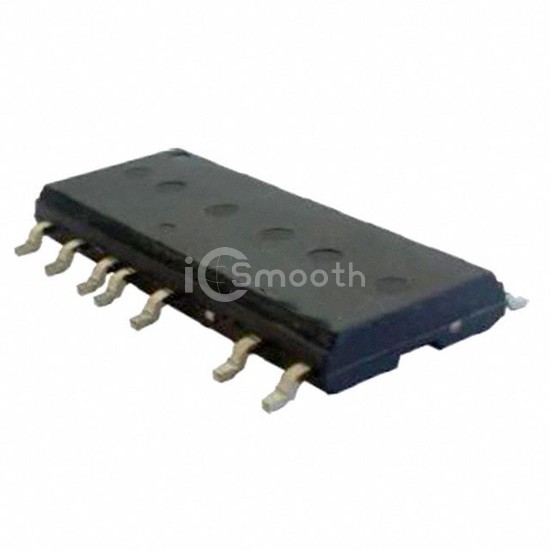

IRSM505-084PA

IC MOTOR DRIVER 600V 23SOP

IRSM505-084PA is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC MOTOR DRIVER 600V 23SOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 13.5V ~ 16.5V, package / case 32-PowerSMD Module, 23 Leads.

Datasheet Request a Quote

In Stock: 1,414

Specifications

17 parameters

Product Status	Obsolete
Output Configuration	Half Bridge (3)
Applications	AC Motors
Interface	Logic
Load Type	Inductive
Technology	UMOS
Rds On (Typ)	340mOhm
Current - Output / Channel	4.6A
Current - Peak Output	15A

Voltage - Supply	13.5V ~ 16.5V
Voltage - Load	200V (Max)
Operating Temperature	-40°C ~ 150°C (TJ)
Features	Bootstrap Circuit
Fault Protection	UVLO
Mounting Type	Surface Mount
Package / Case	32-PowerSMD Module, 23 Leads
Supplier Device Package	23-SOP
