IRSM505-084DA

In Stock: 7,111

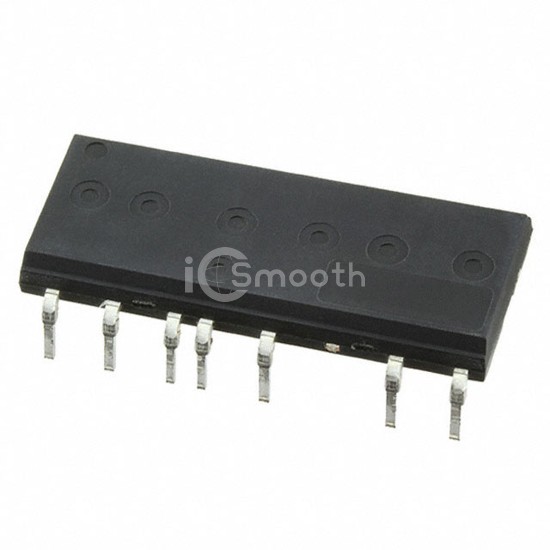

IRSM505-084DA - Infineon Technologies - PMIC - Full, Half-Bridge Drivers
REF: IRSM505-084DA Infineon Technologies
IRSM505-084DA

Infineon Technologies

IC MOTOR DRIVER 600V 23DIP

IRSM505-084DA is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC MOTOR DRIVER 600V 23DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply 13.5V ~ 16.5V, package / case 23-DIP Module.

Datasheet Request a Quote

In Stock: 7,111

Specifications

17 parameters
Product StatusObsolete
Output ConfigurationHalf Bridge (3)
ApplicationsAC Motors
InterfaceLogic
Load TypeInductive
TechnologyUMOS
Rds On (Typ)340mOhm
Current - Output / Channel4.6A
Current - Peak Output15A
Voltage - Supply13.5V ~ 16.5V
Voltage - Load200V (Max)
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesBootstrap Circuit
Fault ProtectionUVLO
Mounting TypeThrough Hole
Package / Case23-DIP Module
Supplier Device Package23-DIP
