IRSM505-015DA

In Stock: 8,884

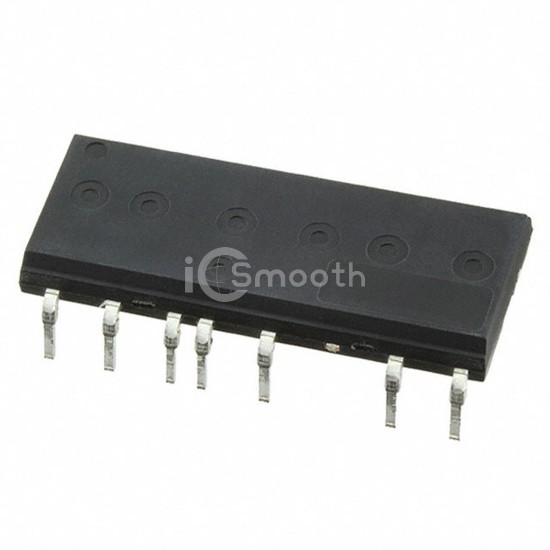

IRSM505-015DA - Infineon Technologies - PMIC - Full, Half-Bridge Drivers
REF: IRSM505-015DA Infineon Technologies
IRSM505-015DA

Infineon Technologies

IC MOTOR DRIVER 600V 23DIP

IRSM505-015DA is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC MOTOR DRIVER 600V 23DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply 13.5V ~ 16.5V, package / case 23-DIP Module.

Datasheet Request a Quote

In Stock: 8,884

Specifications

17 parameters
Product StatusNot For New Designs
Output ConfigurationHalf Bridge (3)
ApplicationsAC Motors
InterfaceLogic
Load TypeInductive
TechnologyUMOS
Rds On (Typ)5Ohm
Current - Output / Channel1.2A
Current - Peak Output9A
Voltage - Supply13.5V ~ 16.5V
Voltage - Load400V (Max)
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesBootstrap Circuit
Fault ProtectionUVLO
Mounting TypeThrough Hole
Package / Case23-DIP Module
Supplier Device Package23-DIP
