IRSM005-800MHTR

In Stock: 909

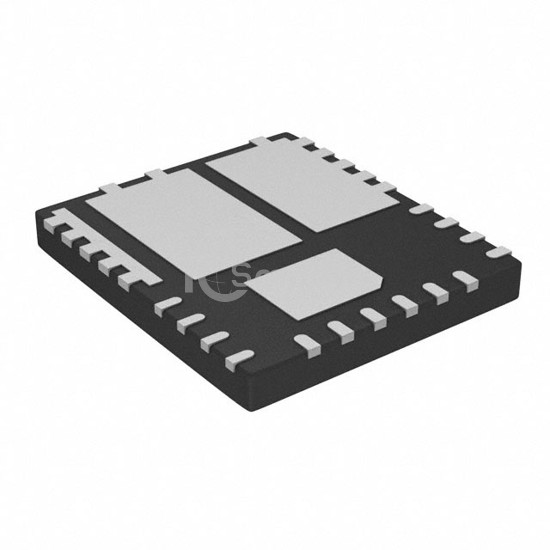

IRSM005-800MHTR - Infineon Technologies - PMIC - Full, Half-Bridge Drivers
REF: IRSM005-800MHTR Infineon Technologies
IRSM005-800MHTR

Infineon Technologies

IC GATE DRIVER 40V QFN

IRSM005-800MHTR is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC GATE DRIVER 40V QFN. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), voltage - supply 10V ~ 20V, package / case 27-PowerVQFN.

Datasheet Request a Quote

In Stock: 909

Tiered Pricing USD
2,000+ $1.6003 —
4,000+ $1.5670 -2%
6,000+ $1.5504 -3% BEST

Specifications

17 parameters
Product StatusActive
Output ConfigurationHalf Bridge
ApplicationsAC Motors, DC Motors, DC-DC Converters, General Purpose
InterfaceLogic
Load TypeInductive, Capacitive
TechnologyPower MOSFET
Rds On (Typ)2.7mOhm
Current - Output / Channel80A
Current - Peak Output-
Voltage - Supply10V ~ 20V
Voltage - Load40V (Max)
Operating Temperature150°C (TJ)
FeaturesBootstrap Circuit
Fault ProtectionUVLO
Mounting TypeSurface Mount
Package / Case27-PowerVQFN
Supplier Device Package27-PQFN (7x8)
