IR3742MTRPBF

In Stock: 2,772

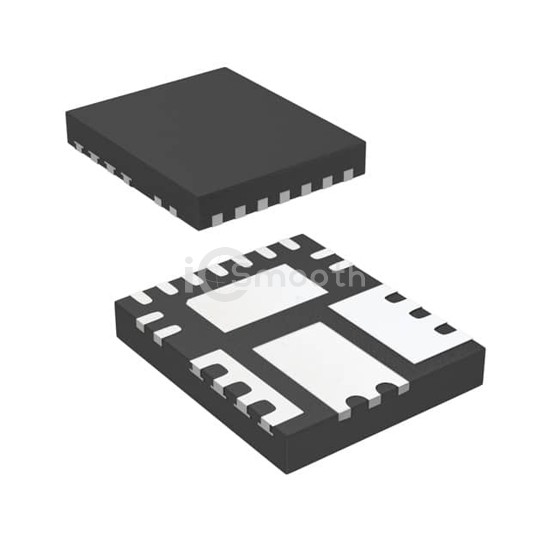

IR3742MTRPBF - Infineon Technologies - PMIC - Full, Half-Bridge Drivers
REF: IR3742MTRPBF Infineon Technologies
IR3742MTRPBF

Infineon Technologies

IC POWER SUPPLY MONITOR MLPQ

IR3742MTRPBF is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC POWER SUPPLY MONITOR MLPQ. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.5V ~ 7.5V, package / case 17-PowerVQFN.

Datasheet Request a Quote

In Stock: 2,772

Specifications

17 parameters
Product StatusObsolete
Output ConfigurationHalf Bridge
ApplicationsSynchronous Buck Converters
InterfacePWM
Load TypeInductive
TechnologyPower MOSFET
Rds On (Typ)4mOhm LS, 8mOhm HS
Current - Output / Channel20A
Current - Peak Output-
Voltage - Supply4.5V ~ 7.5V
Voltage - Load1V ~ 21V
Operating Temperature-40°C ~ 125°C (TJ)
FeaturesBootstrap Circuit, Status Flag
Fault ProtectionCurrent Limiting, Over Temperature, UVLO
Mounting TypeSurface Mount
Package / Case17-PowerVQFN
Supplier Device Package17-PQFN (5x6)
