IR3556MTRPBF

In Stock: 8,818

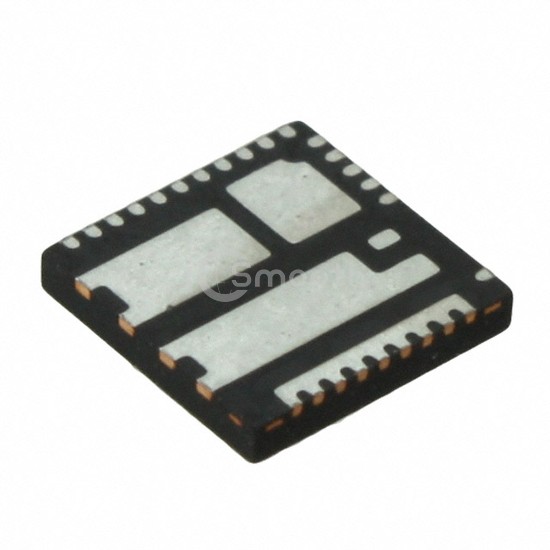

IR3556MTRPBF - Infineon Technologies - PMIC - Full, Half-Bridge Drivers
REF: IR3556MTRPBF Infineon Technologies
IR3556MTRPBF

Infineon Technologies

IC DRIVER GATE 50A PQFN

IR3556MTRPBF is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC DRIVER GATE 50A PQFN. Key specifications: mounting type Surface Mount, voltage - supply 4.5V ~ 7V, package / case 30-PowerVFQFN, current - output / channel 50A.

Datasheet Request a Quote

In Stock: 8,818

Specifications

17 parameters
Product StatusObsolete
Output Configuration-
ApplicationsSynchronous Buck Converters, Voltage Regulators
InterfacePWM
Load TypeInductive
Technology-
Rds On (Typ)-
Current - Output / Channel50A
Current - Peak Output-
Voltage - Supply4.5V ~ 7V
Voltage - Load4.5V ~ 15V
Operating Temperature-
FeaturesDiode Emulation, Status Flag
Fault ProtectionCurrent Limiting, Over Temperature, Over Voltage, UVLO
Mounting TypeSurface Mount
Package / Case30-PowerVFQFN
Supplier Device Package30-PQFN (6x6)
