IR3550MTRPBF

In Stock: 6,775

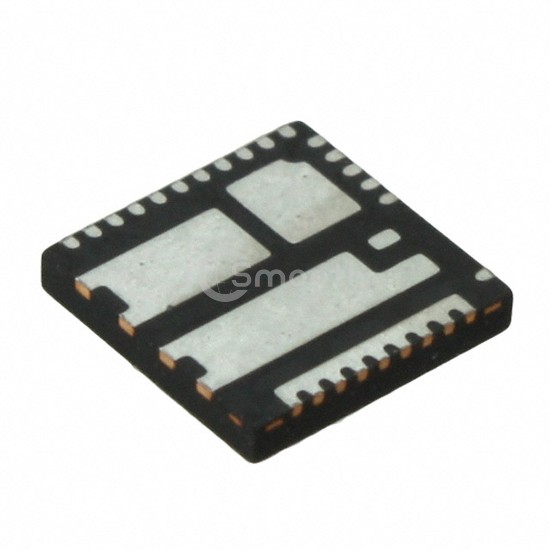

IR3550MTRPBF - Infineon Technologies - PMIC - Full, Half-Bridge Drivers
REF: IR3550MTRPBF Infineon Technologies
IR3550MTRPBF

Infineon Technologies

IC DRIVER GATE 60A PQFN

IR3550MTRPBF is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC DRIVER GATE 60A PQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.5V ~ 7V, package / case 32-PowerVFQFN.

Datasheet Request a Quote

In Stock: 6,775

Specifications

17 parameters
Product StatusObsolete
Output ConfigurationHalf Bridge
ApplicationsSynchronous Buck Converters, Voltage Regulators
InterfacePWM
Load TypeInductive
TechnologyPower MOSFET
Rds On (Typ)-
Current - Output / Channel60A
Current - Peak Output90A
Voltage - Supply4.5V ~ 7V
Voltage - Load4.5V ~ 15V
Operating Temperature-40°C ~ 125°C (TJ)
FeaturesBootstrap Circuit, Diode Emulation, Status Flag
Fault ProtectionOver Temperature, Shoot-Through, UVLO
Mounting TypeSurface Mount
Package / Case32-PowerVFQFN
Supplier Device Package32-PQFN (6x6)
