IFX9201SGAUMA1

In Stock: 4,570

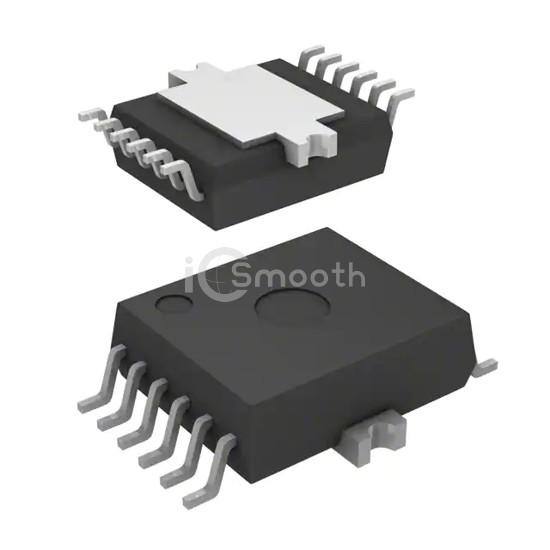

IFX9201SGAUMA1 - Infineon Technologies - PMIC - Full, Half-Bridge Drivers
REF: IFX9201SGAUMA1 Infineon Technologies
IFX9201SGAUMA1

Infineon Technologies

IC HALF-BRIDGE DRVR 2 CH 12DSO

IFX9201SGAUMA1 is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC HALF-BRIDGE DRVR 2 CH 12DSO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 5V ~ 36V, package / case 12-BSOP (0.295", 7.50mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 4,570

Tiered Pricing USD
1+ $3.6100 —
10+ $2.7210 -25%
25+ $2.4980 -31%
100+ $2.2529 -38%
250+ $2.1360 -41%
500+ $2.0656 -43% BEST

Specifications

17 parameters
Product StatusActive
Output ConfigurationHalf Bridge (2)
ApplicationsDC Motors, General Purpose
InterfacePWM, SPI
Load TypeInductive
TechnologyPower MOSFET
Rds On (Typ)100mOhm LS, 100mOhm HS
Current - Output / Channel6A
Current - Peak Output-
Voltage - Supply5V ~ 36V
Voltage - Load5V ~ 36V
Operating Temperature-40°C ~ 125°C (TJ)
Features-
Fault ProtectionCurrent Limiting, Open Load Detect, Over Temperature, Short Circuit, UVLO
Mounting TypeSurface Mount
Package / Case12-BSOP (0.295", 7.50mm Width) Exposed Pad
Supplier Device PackagePG-DSO-12-17
