BTS7960P

In Stock: 3,114

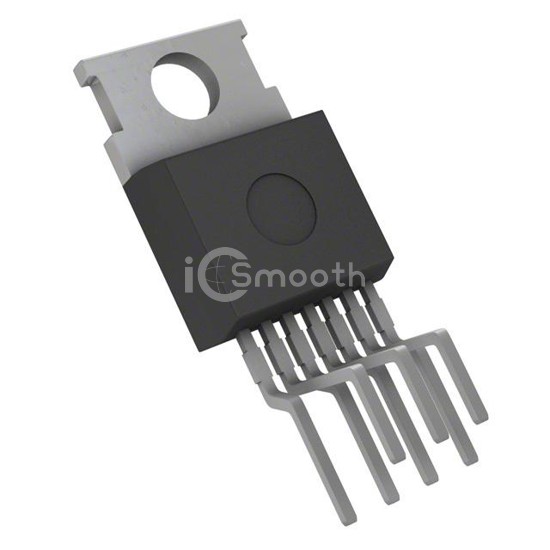

BTS7960P - Infineon Technologies - PMIC - Full, Half-Bridge Drivers
REF: BTS7960P Infineon Technologies
BTS7960P

Infineon Technologies

IC NOVALITHIC 1/2 BRIDGE TO220-7

BTS7960P is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC NOVALITHIC 1/2 BRIDGE TO220-7. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply 5.5V ~ 27.5V, package / case TO-220-7 Formed Leads.

Datasheet Request a Quote

In Stock: 3,114

Specifications

17 parameters
Product StatusObsolete
Output ConfigurationHalf Bridge
ApplicationsDC Motors, General Purpose
InterfaceLogic
Load TypeInductive
TechnologyDMOS
Rds On (Typ)9mOhm LS, 7mOhm HS
Current - Output / Channel40A
Current - Peak Output60A
Voltage - Supply5.5V ~ 27.5V
Voltage - Load5.5V ~ 27.5V
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesLatch Function, Slew Rate Controlled, Status Flag
Fault ProtectionCurrent Limiting, Over Temperature, Short Circuit, UVLO
Mounting TypeThrough Hole
Package / CaseTO-220-7 Formed Leads
Supplier Device PackageP-TO220-7
