BTS7750GP

In Stock: 2,390
BTS7750GP - Infineon Technologies - PMIC - Full, Half-Bridge Drivers
REF: BTS7750GP Infineon Technologies

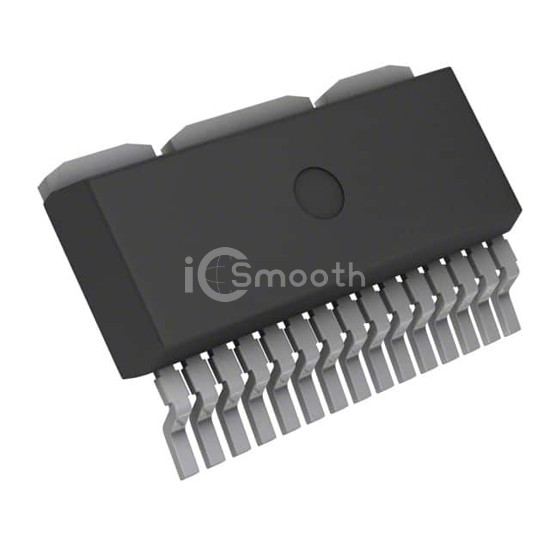

BTS7750GP

Infineon Technologies

IC TRILITHIC SWITCH D2PAK-15

BTS7750GP is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC TRILITHIC SWITCH D2PAK-15. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 1.8V ~ 42V, package / case TO-263-18 (15 Leads + 3 Tabs).

Datasheet Request a Quote

In Stock: 2,390

Specifications

17 parameters
Product StatusObsolete
Output ConfigurationHalf Bridge (2)
ApplicationsDC Motors, General Purpose
InterfaceLogic
Load TypeInductive
TechnologyDMOS
Rds On (Typ)45mOhm LS, 70mOhm HS
Current - Output / Channel-
Current - Peak Output12A
Voltage - Supply1.8V ~ 42V
Voltage - Load1.8V ~ 42V
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesStatus Flag
Fault ProtectionESD, Over Temperature, Short Circuit, UVLO
Mounting TypeSurface Mount
Package / CaseTO-263-18 (15 Leads + 3 Tabs)
Supplier Device PackagePG-TO263-15-1
