BTS7700GNUMA1

In Stock: 2,088

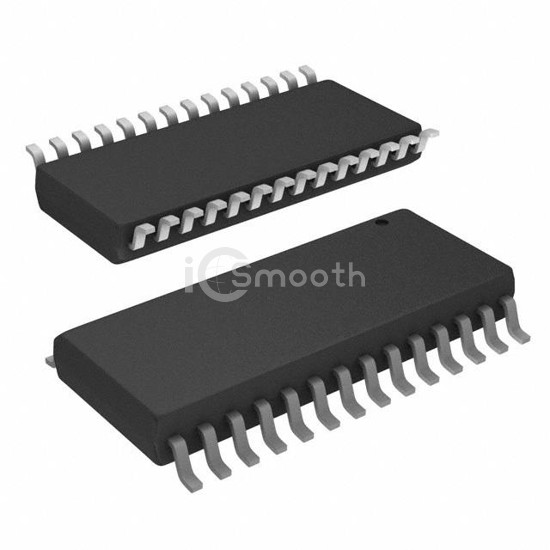

BTS7700GNUMA1 - Infineon Technologies - PMIC - Full, Half-Bridge Drivers
REF: BTS7700GNUMA1 Infineon Technologies
BTS7700GNUMA1

Infineon Technologies

IC SW TRILITHIC 200MOHM PDSO28

BTS7700GNUMA1 is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC SW TRILITHIC 200MOHM PDSO28. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 1.8V ~ 42V, package / case 28-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 2,088

Specifications

17 parameters
Product StatusObsolete
Output ConfigurationHalf Bridge (2)
ApplicationsDC Motors, General Purpose
InterfaceLogic
Load TypeInductive
TechnologyDMOS
Rds On (Typ)80mOhm LS, 110mOhm HS
Current - Output / Channel-
Current - Peak Output9A
Voltage - Supply1.8V ~ 42V
Voltage - Load1.8V ~ 42V
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesSlew Rate Controlled, Status Flag
Fault ProtectionESD, Over Temperature, Short Circuit, UVLO
Mounting TypeSurface Mount
Package / Case28-SOIC (0.295", 7.50mm Width)
Supplier Device PackageP-DSO-28-14
