Name: BTN7970B
Brand: Infineon Technologies
SKU: BTN7970B
Availability: InStock

REF: BTN7970B Infineon Technologies

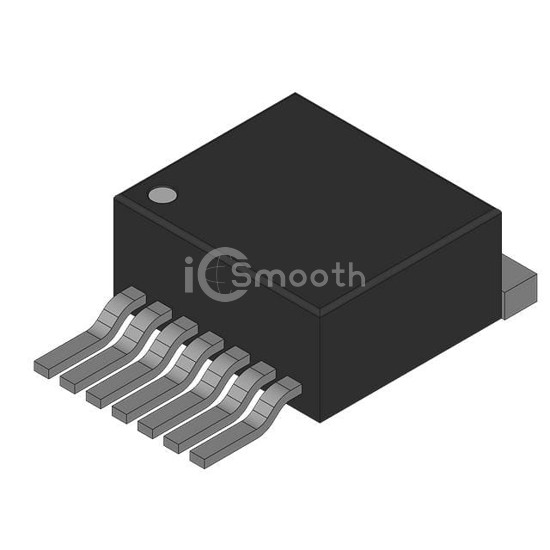

BTN7970B

BTN7970 - INTEGRATED HALF-BRIDGE

BTN7970B is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. BTN7970 - INTEGRATED HALF-BRIDGE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 8V ~ 18V, package / case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA.

Datasheet Request a Quote

In Stock: 6,237

Specifications

17 parameters

Product Status	Active
Output Configuration	Half Bridge
Applications	General Purpose
Interface	Logic, PWM
Load Type	Inductive
Technology	DMOS
Rds On (Typ)	9mOhm LS, 7mOhm HS
Current - Output / Channel	70A
Current - Peak Output	70A

Voltage - Supply	8V ~ 18V
Voltage - Load	8V ~ 18V
Operating Temperature	-40°C ~ 150°C (TJ)
Features	Charge Pump, Status Flag
Fault Protection	Current Limiting, Over Current, Over Temperature, Over Voltage, Short Circuit
Mounting Type	Surface Mount
Package / Case	TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Supplier Device Package	PG-TO263-7-1
