BTN70301EPAXUMA1

In Stock: 6,031
BTN70301EPAXUMA1 - Infineon Technologies - PMIC - Full, Half-Bridge Drivers
REF: BTN70301EPAXUMA1 Infineon Technologies
BTN70301EPAXUMA1

Infineon Technologies

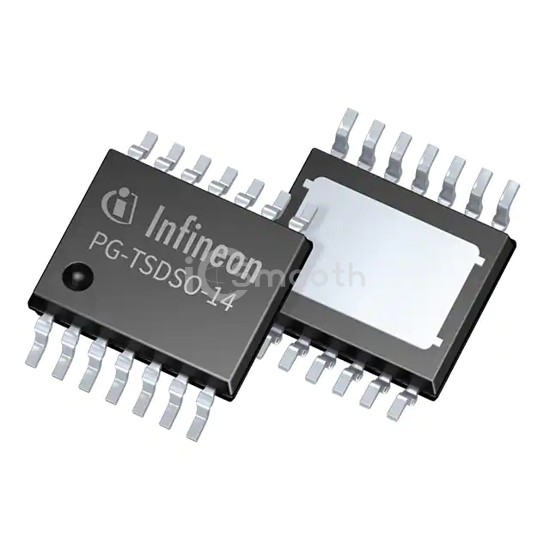

IC HALF BRIDGE DRIVER TSDSO-14

BTN70301EPAXUMA1 is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC HALF BRIDGE DRIVER TSDSO-14. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 6V ~ 18V, package / case 14-TSSOP (0.154", 3.90mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 6,031

Tiered Pricing USD
1+ $2.6700 —
10+ $1.9870 -26%
25+ $1.8168 -32%
100+ $1.6301 -39%
250+ $1.5410 -42%
500+ $1.4874 -44%
1,000+ $1.4432 -46% BEST

Specifications

17 parameters
Product StatusActive
Output ConfigurationHalf Bridge
ApplicationsDC Motors, General Purpose
InterfaceLogic
Load TypeInductive
TechnologySMART7
Rds On (Typ)20mOhm LS, 12mOhm HS
Current - Output / Channel7A
Current - Peak Output17A
Voltage - Supply6V ~ 18V
Voltage - Load-
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesDiagnostic Enable, Enable, SENSE
Fault ProtectionCurrent Limiting, Over Current, Over Temperature, Over Voltage, Short Circuit
Mounting TypeSurface Mount
Package / Case14-TSSOP (0.154", 3.90mm Width) Exposed Pad
Supplier Device PackagePG-TSDSO-14
