Name: BTM7810KAUMA1
Brand: Infineon Technologies
SKU: BTM7810KAUMA1
Availability: InStock

REF: BTM7810KAUMA1 Infineon Technologies

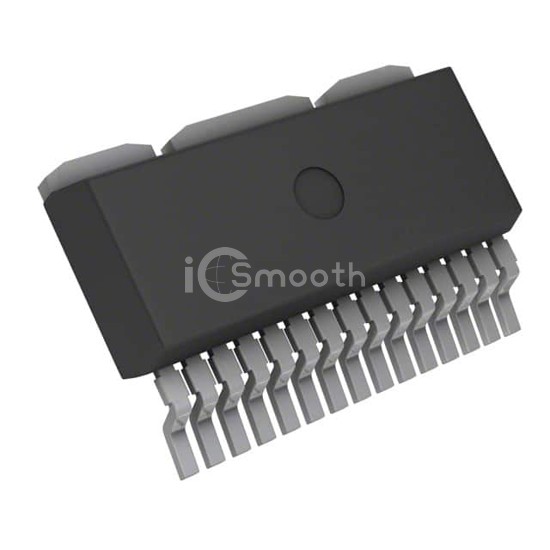

BTM7810KAUMA1

IC BRIDGE DRIVER PAR TO263-15

BTM7810KAUMA1 is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC BRIDGE DRIVER PAR TO263-15. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 110°C (TJ), voltage - supply 1.8V ~ 42V, package / case TO-263-18 (15 Leads + 3 Tabs).

Datasheet Request a Quote

In Stock: 7,627

Specifications

17 parameters

Product Status	Obsolete
Output Configuration	Half Bridge (2)
Applications	DC Motors, General Purpose
Interface	Logic
Load Type	Inductive
Technology	DMOS
Rds On (Typ)	14mOhm LS, 26mOhm HS
Current - Output / Channel	-
Current - Peak Output	42A

Voltage - Supply	1.8V ~ 42V
Voltage - Load	1.8V ~ 42V
Operating Temperature	-40°C ~ 110°C (TJ)
Features	Status Flag
Fault Protection	Open Load Detect, Over Temperature, Short Circuit, UVLO
Mounting Type	Surface Mount
Package / Case	TO-263-18 (15 Leads + 3 Tabs)
Supplier Device Package	PG-TO263-15-1
