Name: BTM7710GPAUMA1
Brand: Infineon Technologies
SKU: BTM7710GPAUMA1
Availability: InStock

REF: BTM7710GPAUMA1 Infineon Technologies

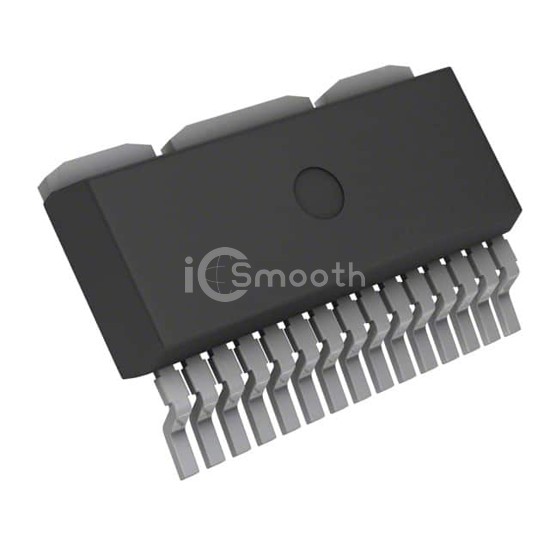

BTM7710GPAUMA1

IC BRIDGE DRIVER PAR TO263-15

BTM7710GPAUMA1 is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC BRIDGE DRIVER PAR TO263-15. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 110°C (TJ), voltage - supply 1.8V ~ 42V, package / case TO-263-18 (15 Leads + 3 Tabs).

Datasheet Request a Quote

In Stock: 1,410

Specifications

17 parameters

Product Status	Obsolete
Output Configuration	Half Bridge (2)
Applications	DC Motors, General Purpose
Interface	Logic
Load Type	Inductive
Technology	DMOS
Rds On (Typ)	40mOhm LS, 70mOhm HS
Current - Output / Channel	-
Current - Peak Output	15A

Voltage - Supply	1.8V ~ 42V
Voltage - Load	1.8V ~ 42V
Operating Temperature	-40°C ~ 110°C (TJ)
Features	Status Flag
Fault Protection	Over Temperature, Short Circuit, UVLO
Mounting Type	Surface Mount
Package / Case	TO-263-18 (15 Leads + 3 Tabs)
Supplier Device Package	PG-TO263-15-1
