PDT10016

In Stock: 5,512

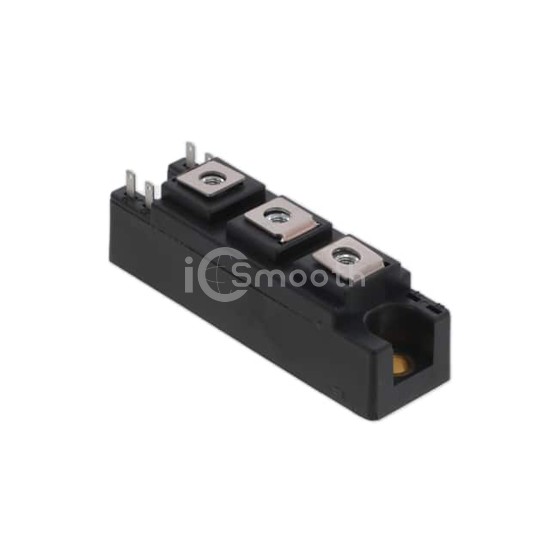

PDT10016 - KYOCERA AVX - Thyristors - SCRs - Modules
REF: PDT10016 KYOCERA AVX
PDT10016

KYOCERA AVX

THYRISTOR MODULE PHASE LEG T+T 1

PDT10016 is a Thyristors - SCRs - Modules manufactured by KYOCERA AVX. THYRISTOR MODULE PHASE LEG T+T 1. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C (TJ), package / case Module.

Datasheet Request a Quote

In Stock: 5,512

Specifications

13 parameters
Product StatusObsolete
StructureSeries Connection - All SCRs
Number of SCRs, Diodes2 SCRs
Voltage - Off State1.6 kV
Current - On State (It (AV)) (Max)100 A
Current - On State (It (RMS)) (Max)156 A
Voltage - Gate Trigger (Vgt) (Max)2.5 V
Current - Gate Trigger (Igt) (Max)100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)2000A @ 50Hz
Current - Hold (Ih) (Max)50 mA
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
