YJQ55P02A-F1-1100HF

In Stock: 4,485

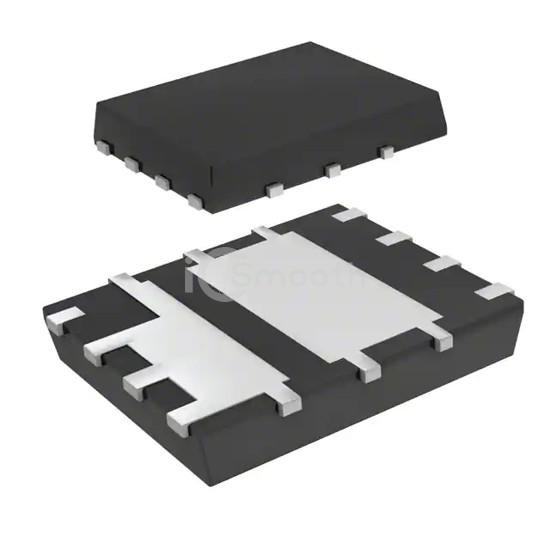

YJQ55P02A-F1-1100HF - Yangzhou Yangjie Electronic Technology Co.,Ltd - Transistors - FETs, MOSFETs - Single
REF: YJQ55P02A-F1-1100HF Yangzhou Yangjie Electronic Technology Co.,Ltd
YJQ55P02A-F1-1100HF

Yangzhou Yangjie Electronic Technology Co.,Ltd

P-CH MOSFET 20V 55A DFN3333-8L

YJQ55P02A-F1-1100HF is a Transistors - FETs, MOSFETs - Single manufactured by Yangzhou Yangjie Electronic Technology Co.,Ltd. P-CH MOSFET 20V 55A DFN3333-8L. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 4,485

Specifications

17 parameters
Product StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C55A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs8.3mOhm @ 15A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs12.7 nC @ 10 V
Vgs (Max)±10V
Input Capacitance (Ciss) (Max) @ Vds6358 pF @ 10 V
FET Feature-
Power Dissipation (Max)3.2W (Ta), 38W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-DFN (3.3x3.3)
Package / Case8-PowerVDFN
