Name: YJQ40P03A-F1-1100HF
Brand: Yangzhou Yangjie Electronic Technology Co.,Ltd
SKU: YJQ40P03A-F1-1100HF
Price: 0.58 USD
Availability: InStock

REF: YJQ40P03A-F1-1100HF Yangzhou Yangjie Electronic Technology Co.,Ltd

YJQ40P03A-F1-1100HF

Yangzhou Yangjie Electronic Technology Co.,Ltd

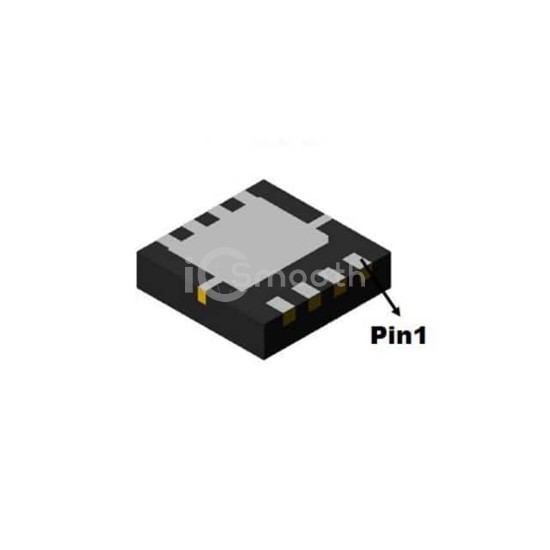

P-CH MOSFET 30V 40A DFN3333-8L

YJQ40P03A-F1-1100HF is a Transistors - FETs, MOSFETs - Single manufactured by Yangzhou Yangjie Electronic Technology Co.,Ltd. P-CH MOSFET 30V 40A DFN3333-8L. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 6,147

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	40A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 20V
Rds On (Max) @ Id, Vgs	13mOhm @ 20A, 20V
Vgs(th) (Max) @ Id	2.8V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	40.1 nC @ 10 V

Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	2152 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	32W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-DFN (3.3x3.3)
Package / Case	8-PowerVDFN
