YJQ3622A-F1-1100HF

In Stock: 4,209

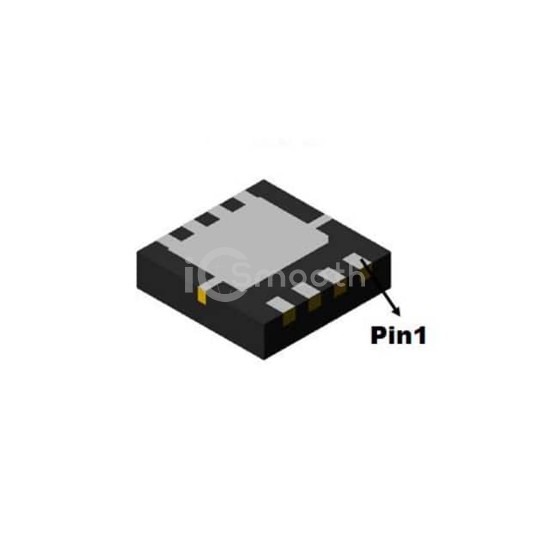

YJQ3622A-F1-1100HF - Yangzhou Yangjie Electronic Technology Co.,Ltd - Transistors - FETs, MOSFETs - Single
REF: YJQ3622A-F1-1100HF Yangzhou Yangjie Electronic Technology Co.,Ltd
YJQ3622A-F1-1100HF

Yangzhou Yangjie Electronic Technology Co.,Ltd

N-CH MOSFET 30V 30A DFN3333-8L

YJQ3622A-F1-1100HF is a Transistors - FETs, MOSFETs - Single manufactured by Yangzhou Yangjie Electronic Technology Co.,Ltd. N-CH MOSFET 30V 30A DFN3333-8L. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 4,209

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C30A
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs13mOhm @ 20A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs23.6 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1015 pF @ 15 V
FET FeatureStandard
Power Dissipation (Max)21W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-DFN (3.3x3.3)
Package / Case8-PowerVDFN
