Name: YJQ1216A-F1-1100HF
Brand: Yangzhou Yangjie Electronic Technology Co.,Ltd
SKU: YJQ1216A-F1-1100HF
Price: 0.51 USD
Availability: InStock

REF: YJQ1216A-F1-1100HF Yangzhou Yangjie Electronic Technology Co.,Ltd

YJQ1216A-F1-1100HF

Yangzhou Yangjie Electronic Technology Co.,Ltd

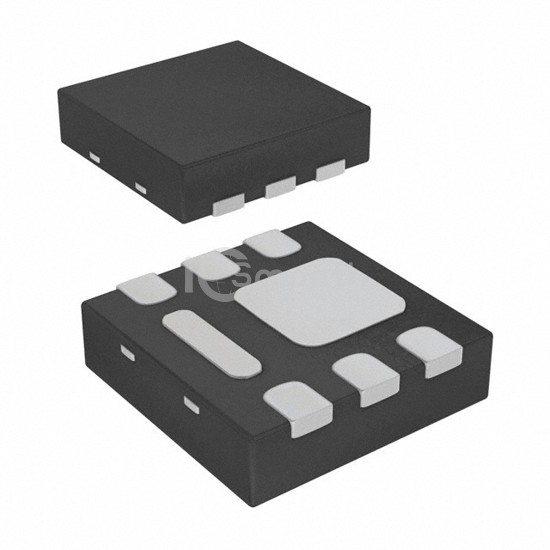

P-CH MOSFET 20V 16A DFN2020-6L-E

YJQ1216A-F1-1100HF is a Transistors - FETs, MOSFETs - Single manufactured by Yangzhou Yangjie Electronic Technology Co.,Ltd. P-CH MOSFET 20V 16A DFN2020-6L-E. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-UDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 3,950

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	16A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	19mOhm @ 10A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	72.8 nC @ 10 V

Vgs (Max)	±10V
Input Capacitance (Ciss) (Max) @ Vds	2992 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	18W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-DFN (2x2)
Package / Case	6-UDFN Exposed Pad
