Name: YJD45G10A-F1-0000HF
Brand: Yangzhou Yangjie Electronic Technology Co.,Ltd
SKU: YJD45G10A-F1-0000HF
Price: 0.82 USD
Availability: InStock

REF: YJD45G10A-F1-0000HF Yangzhou Yangjie Electronic Technology Co.,Ltd

YJD45G10A-F1-0000HF

Yangzhou Yangjie Electronic Technology Co.,Ltd

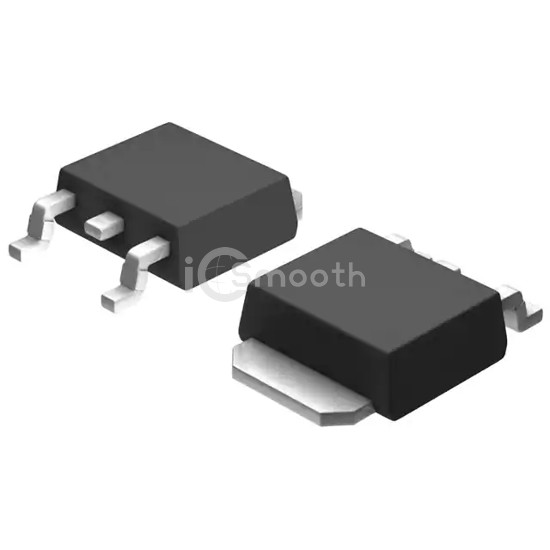

N-CH MOSFET 100V 45A TO-252

YJD45G10A-F1-0000HF is a Transistors - FETs, MOSFETs - Single manufactured by Yangzhou Yangjie Electronic Technology Co.,Ltd. N-CH MOSFET 100V 45A TO-252. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 3,577

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	45A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	17mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	16 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1135 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	72W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-252
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
