DBL156S-F1-3000HF

In Stock: 2,882

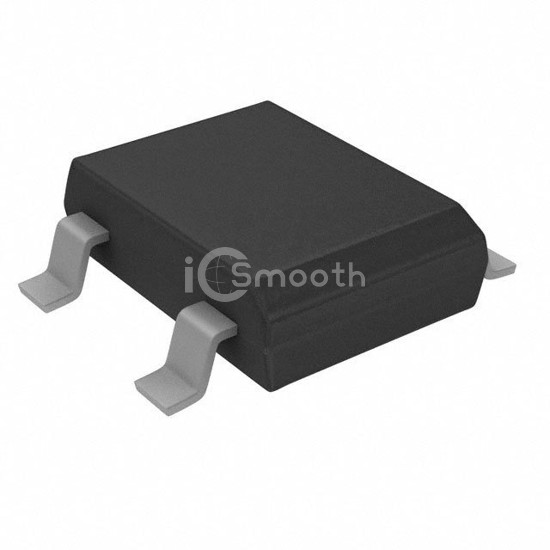

DBL156S-F1-3000HF - Yangzhou Yangjie Electronic Technology Co.,Ltd - Diodes - Bridge Rectifiers
REF: DBL156S-F1-3000HF Yangzhou Yangjie Electronic Technology Co.,Ltd
DBL156S-F1-3000HF

Yangzhou Yangjie Electronic Technology Co.,Ltd

RECT BRIDGE 800V 1.5A DBLS

DBL156S-F1-3000HF is a Diodes - Bridge Rectifiers manufactured by Yangzhou Yangjie Electronic Technology Co.,Ltd. RECT BRIDGE 800V 1.5A DBLS. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 2,882

Specifications

11 parameters
Product StatusActive
Diode TypeSingle Phase
TechnologyStandard
Voltage - Peak Reverse (Max)800 V
Current - Average Rectified (Io)1.5 A
Voltage - Forward (Vf) (Max) @ If1 V @ 700 mA
Current - Reverse Leakage @ Vr5 µA @ 800 V
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case4-SMD, Gull Wing
Supplier Device PackageDBLS
