HDS20M-13

In Stock: 43,855

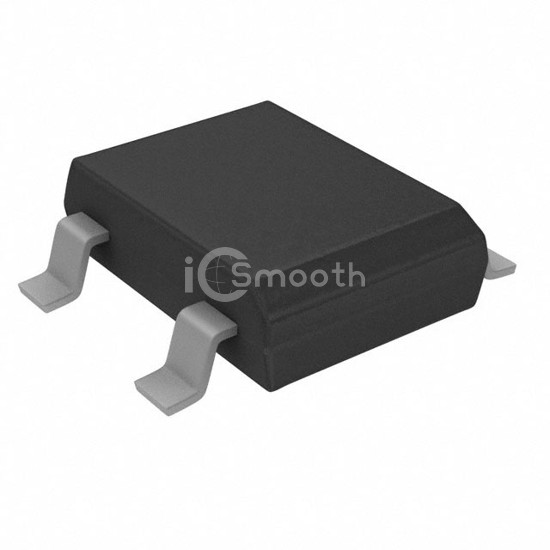

HDS20M-13 - Diodes Incorporated - Diodes - Bridge Rectifiers
REF: HDS20M-13 Diodes Incorporated
HDS20M-13

Diodes Incorporated

BRIDGE RECT 1PHASE 1KV 2A HDS

HDS20M-13 is a Diodes - Bridge Rectifiers manufactured by Diodes Incorporated. BRIDGE RECT 1PHASE 1KV 2A HDS. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 43,855

Tiered Pricing USD
1+ $0.7800 —
10+ $0.4820 -38%
100+ $0.3109 -60%
500+ $0.2372 -70%
1,000+ $0.2134 -73% BEST

Specifications

11 parameters
Product StatusActive
Diode TypeSingle Phase
TechnologyStandard
Voltage - Peak Reverse (Max)1 kV
Current - Average Rectified (Io)2 A
Voltage - Forward (Vf) (Max) @ If950 mV @ 1 A
Current - Reverse Leakage @ Vr5 µA @ 1000 V
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case4-SMD, Gull Wing
Supplier Device PackageHDS
