Name: CMF20120D
Brand: Wolfspeed, Inc.
SKU: CMF20120D
Availability: InStock

REF: CMF20120D Wolfspeed, Inc.

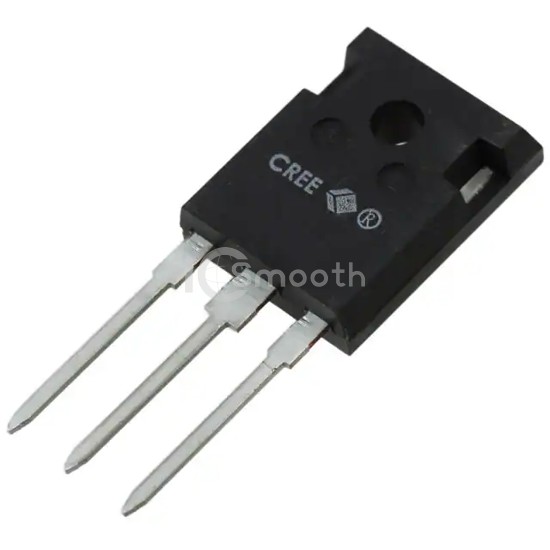

CMF20120D

SICFET N-CH 1200V 42A TO247-3

CMF20120D is a Transistors - FETs, MOSFETs - Single manufactured by Wolfspeed, Inc.. SICFET N-CH 1200V 42A TO247-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 135°C (TJ), package / case TO-247-3.

Datasheet Request a Quote

In Stock: 6,389

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	1200 V
Current - Continuous Drain (Id) @ 25°C	42A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	20V
Rds On (Max) @ Id, Vgs	110mOhm @ 20A, 20V
Vgs(th) (Max) @ Id	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	90.8 nC @ 20 V

Vgs (Max)	+25V, -5V
Input Capacitance (Ciss) (Max) @ Vds	1915 pF @ 800 V
FET Feature	-
Power Dissipation (Max)	215W (Tc)
Operating Temperature	-55°C ~ 135°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247-3
Package / Case	TO-247-3
