Name: CMF10120D
Brand: Wolfspeed, Inc.
SKU: CMF10120D
Availability: InStock

REF: CMF10120D Wolfspeed, Inc.

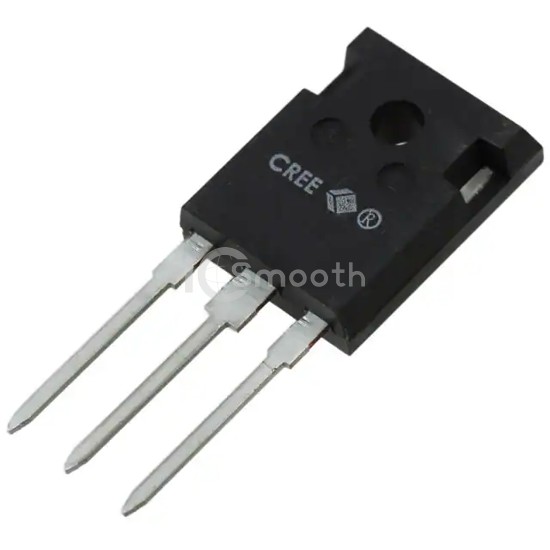

CMF10120D

SICFET N-CH 1200V 24A TO247

CMF10120D is a Transistors - FETs, MOSFETs - Single manufactured by Wolfspeed, Inc.. SICFET N-CH 1200V 24A TO247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 135°C (TJ), package / case TO-247-3.

Datasheet Request a Quote

In Stock: 4,673

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	1200 V
Current - Continuous Drain (Id) @ 25°C	24A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	20V
Rds On (Max) @ Id, Vgs	220mOhm @ 10A, 20V
Vgs(th) (Max) @ Id	4V @ 500µA
Gate Charge (Qg) (Max) @ Vgs	47.1 nC @ 20 V

Vgs (Max)	+25V, -5V
Input Capacitance (Ciss) (Max) @ Vds	928 pF @ 800 V
FET Feature	-
Power Dissipation (Max)	134W (Tc)
Operating Temperature	-55°C ~ 135°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247
Package / Case	TO-247-3
