Name: C3M0350120D
Brand: Wolfspeed, Inc.
SKU: C3M0350120D
Price: 6.66 USD
Availability: InStock

REF: C3M0350120D Wolfspeed, Inc.

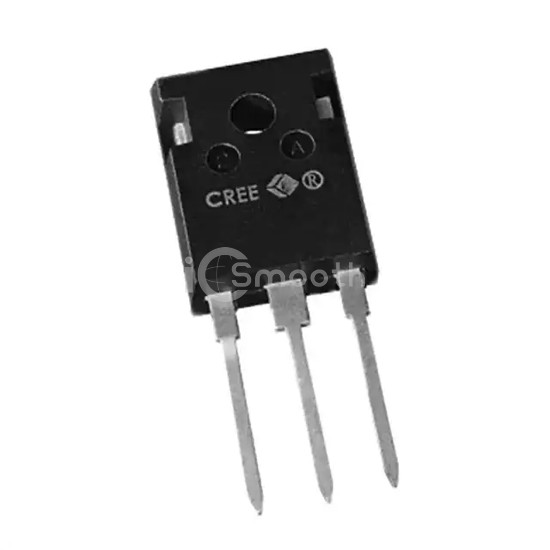

C3M0350120D

SICFET N-CH 1200V 7.6A TO247-3

C3M0350120D is a Transistors - FETs, MOSFETs - Single manufactured by Wolfspeed, Inc.. SICFET N-CH 1200V 7.6A TO247-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3.

Datasheet Request a Quote

In Stock: 880

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	1200 V
Current - Continuous Drain (Id) @ 25°C	7.6A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	15V
Rds On (Max) @ Id, Vgs	455mOhm @ 3.6A, 15V
Vgs(th) (Max) @ Id	3.6V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	19 nC @ 15 V

Vgs (Max)	+15V, -4V
Input Capacitance (Ciss) (Max) @ Vds	345 pF @ 1000 V
FET Feature	-
Power Dissipation (Max)	50W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247-3
Package / Case	TO-247-3
