Name: C3M0075120K
Brand: Wolfspeed, Inc.
SKU: C3M0075120K
Price: 17.72 USD
Availability: InStock

REF: C3M0075120K Wolfspeed, Inc.

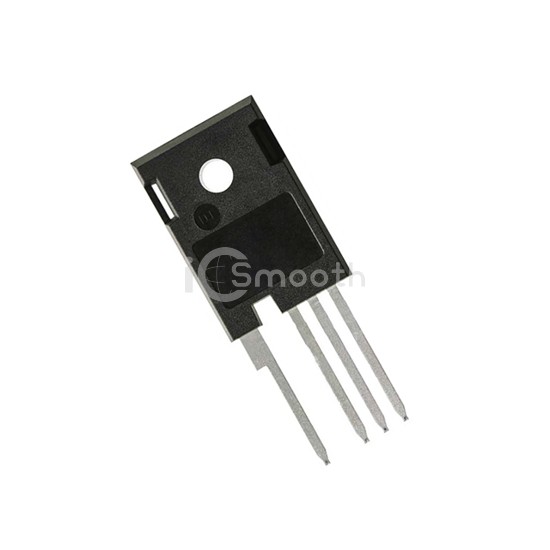

C3M0075120K

SICFET N-CH 1200V 30A TO247-4L

C3M0075120K is a Transistors - FETs, MOSFETs - Single manufactured by Wolfspeed, Inc.. SICFET N-CH 1200V 30A TO247-4L. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-4.

Datasheet Request a Quote

In Stock: 1,819

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	1200 V
Current - Continuous Drain (Id) @ 25°C	30A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	15V
Rds On (Max) @ Id, Vgs	90mOhm @ 20A, 15V
Vgs(th) (Max) @ Id	4V @ 5mA
Gate Charge (Qg) (Max) @ Vgs	51 nC @ 15 V

Vgs (Max)	+19V, -8V
Input Capacitance (Ciss) (Max) @ Vds	1350 pF @ 1000 V
FET Feature	-
Power Dissipation (Max)	113.6W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247-4L
Package / Case	TO-247-4
