Name: C3M0065090J
Brand: Wolfspeed, Inc.
SKU: C3M0065090J
Price: 16.28 USD
Availability: InStock

REF: C3M0065090J Wolfspeed, Inc.

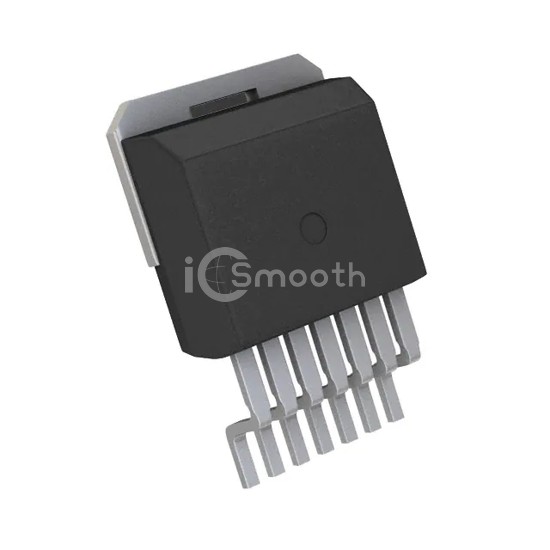

C3M0065090J

SICFET N-CH 900V 35A D2PAK-7

C3M0065090J is a Transistors - FETs, MOSFETs - Single manufactured by Wolfspeed, Inc.. SICFET N-CH 900V 35A D2PAK-7. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA.

Datasheet Request a Quote

In Stock: 2,356

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	900 V
Current - Continuous Drain (Id) @ 25°C	35A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	15V
Rds On (Max) @ Id, Vgs	78mOhm @ 20A, 15V
Vgs(th) (Max) @ Id	2.1V @ 5mA
Gate Charge (Qg) (Max) @ Vgs	30 nC @ 15 V

Vgs (Max)	+19V, -8V
Input Capacitance (Ciss) (Max) @ Vds	660 pF @ 600 V
FET Feature	-
Power Dissipation (Max)	113W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D2PAK-7
Package / Case	TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
