Name: C3M0060065K
Brand: Wolfspeed, Inc.
SKU: C3M0060065K
Price: 14.91 USD
Availability: InStock

REF: C3M0060065K Wolfspeed, Inc.

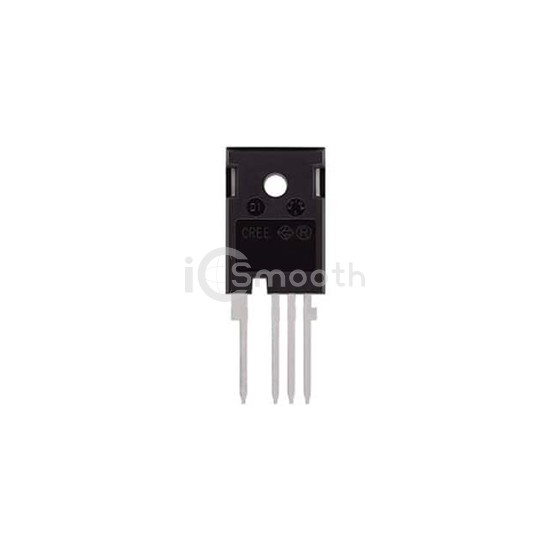

C3M0060065K

SICFET N-CH 650V 37A TO247-4L

C3M0060065K is a Transistors - FETs, MOSFETs - Single manufactured by Wolfspeed, Inc.. SICFET N-CH 650V 37A TO247-4L. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case TO-247-4.

Datasheet Request a Quote

In Stock: 4,931

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	37A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	15V
Rds On (Max) @ Id, Vgs	79mOhm @ 13.2A, 15V
Vgs(th) (Max) @ Id	3.6V @ 5mA
Gate Charge (Qg) (Max) @ Vgs	46 nC @ 15 V

Vgs (Max)	+15V, -4V
Input Capacitance (Ciss) (Max) @ Vds	1020 pF @ 600 V
FET Feature	-
Power Dissipation (Max)	150W (Tc)
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247-4L
Package / Case	TO-247-4
