Name: C3M0032120K
Brand: Wolfspeed, Inc.
SKU: C3M0032120K
Price: 32.58 USD
Availability: InStock

REF: C3M0032120K Wolfspeed, Inc.

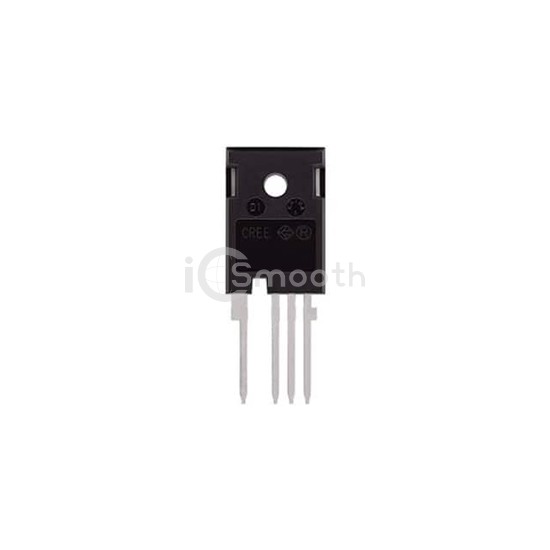

C3M0032120K

SICFET N-CH 1200V 63A TO247-4L

C3M0032120K is a Transistors - FETs, MOSFETs - Single manufactured by Wolfspeed, Inc.. SICFET N-CH 1200V 63A TO247-4L. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case TO-247-4.

Datasheet Request a Quote

In Stock: 1,644

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	1200 V
Current - Continuous Drain (Id) @ 25°C	63A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	15V
Rds On (Max) @ Id, Vgs	43mOhm @ 40A, 15V
Vgs(th) (Max) @ Id	3.6V @ 11.5mA
Gate Charge (Qg) (Max) @ Vgs	118 nC @ 15 V

Vgs (Max)	+15V, -4V
Input Capacitance (Ciss) (Max) @ Vds	3357 pF @ 1000 V
FET Feature	-
Power Dissipation (Max)	283W (Tc)
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247-4L
Package / Case	TO-247-4
