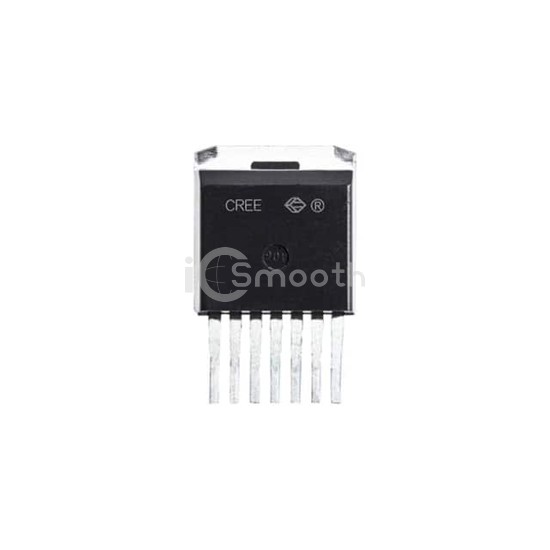

Name: C3M0032120J1
Brand: Wolfspeed, Inc.
SKU: C3M0032120J1
Price: 32.58 USD
Availability: InStock

REF: C3M0032120J1 Wolfspeed, Inc.

C3M0032120J1

1200V 32MOHM SIC MOSFET

C3M0032120J1 is a Transistors - FETs, MOSFETs - Single manufactured by Wolfspeed, Inc.. 1200V 32MOHM SIC MOSFET. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA.

Datasheet Request a Quote

In Stock: 6,715

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	1200 V
Current - Continuous Drain (Id) @ 25°C	68A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	15V
Rds On (Max) @ Id, Vgs	43mOhm @ 41.4A, 15V
Vgs(th) (Max) @ Id	3.6V @ 11.5mA
Gate Charge (Qg) (Max) @ Vgs	111 nC @ 15 V

Vgs (Max)	+15V, -4V
Input Capacitance (Ciss) (Max) @ Vds	3424 pF @ 1000 V
FET Feature	-
Power Dissipation (Max)	277W (Tc)
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-263-7
Package / Case	TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
