Name: C3M0025065J1
Brand: Wolfspeed, Inc.
SKU: C3M0025065J1
Price: 27.87 USD
Availability: InStock

REF: C3M0025065J1 Wolfspeed, Inc.

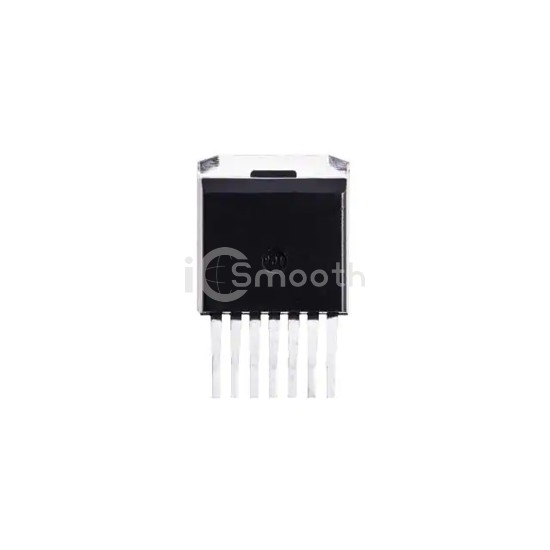

C3M0025065J1

650V 25 M SIC MOSFET

C3M0025065J1 is a Transistors - FETs, MOSFETs - Single manufactured by Wolfspeed, Inc.. 650V 25 M SIC MOSFET. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA.

Datasheet Request a Quote

In Stock: 8,755

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	80A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	15V
Rds On (Max) @ Id, Vgs	34mOhm @ 33.5A, 15V
Vgs(th) (Max) @ Id	3.6V @ 9.22mA
Gate Charge (Qg) (Max) @ Vgs	109 nC @ 15 V

Vgs (Max)	+19V, -8V
Input Capacitance (Ciss) (Max) @ Vds	2980 pF @ 400 V
FET Feature	-
Power Dissipation (Max)	271W (Tc)
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-263-7
Package / Case	TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
