Name: C2M1000170J-TR
Brand: Wolfspeed, Inc.
SKU: C2M1000170J-TR
Price: 6.49 USD
Availability: InStock

REF: C2M1000170J-TR Wolfspeed, Inc.

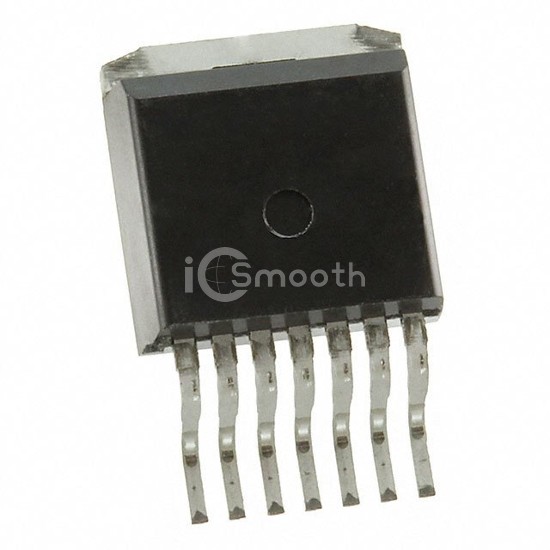

C2M1000170J-TR

Wolfspeed, Inc.

SICFET N-CH 1700V 5.3A D2PAK-7

C2M1000170J-TR is a Transistors - FETs, MOSFETs - Single manufactured by Wolfspeed, Inc.. SICFET N-CH 1700V 5.3A D2PAK-7. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA.

Datasheet Request a Quote

In Stock: 8,170

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	1700 V
Current - Continuous Drain (Id) @ 25°C	5.3A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	20V
Rds On (Max) @ Id, Vgs	1.4Ohm @ 2A, 20V
Vgs(th) (Max) @ Id	3.1V @ 500µA (Typ)
Gate Charge (Qg) (Max) @ Vgs	13 nC @ 20 V

Vgs (Max)	+25V, -10V
Input Capacitance (Ciss) (Max) @ Vds	200 pF @ 1000 V
FET Feature	-
Power Dissipation (Max)	78W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D2PAK-7
Package / Case	TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
