Name: C2M0080170P
Brand: Wolfspeed, Inc.
SKU: C2M0080170P
Availability: InStock

REF: C2M0080170P Wolfspeed, Inc.

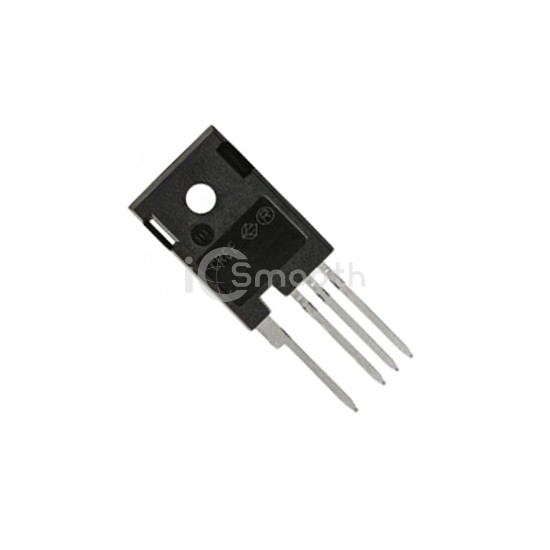

C2M0080170P

SICFET N-CH 1700V 40A TO247-4

C2M0080170P is a Transistors - FETs, MOSFETs - Single manufactured by Wolfspeed, Inc.. SICFET N-CH 1700V 40A TO247-4. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-4.

Datasheet Request a Quote

In Stock: 4,708

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	1700 V
Current - Continuous Drain (Id) @ 25°C	40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	20V
Rds On (Max) @ Id, Vgs	125mOhm @ 28A, 20V
Vgs(th) (Max) @ Id	4V @ 10mA
Gate Charge (Qg) (Max) @ Vgs	120 nC @ 20 V

Vgs (Max)	+25V, -10V
Input Capacitance (Ciss) (Max) @ Vds	2250 pF @ 1000 V
FET Feature	-
Power Dissipation (Max)	277W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247-4L
Package / Case	TO-247-4
