Name: C2M0045170P
Brand: Wolfspeed, Inc.
SKU: C2M0045170P
Price: 93.00 USD
Availability: InStock

REF: C2M0045170P Wolfspeed, Inc.

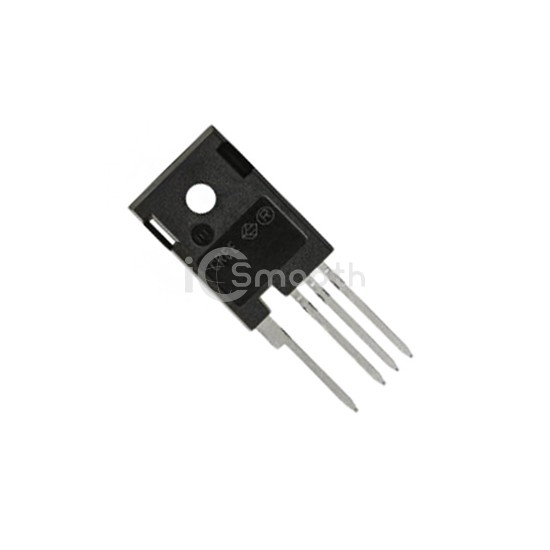

C2M0045170P

SICFET N-CH 1700V 72A TO247-4

C2M0045170P is a Transistors - FETs, MOSFETs - Single manufactured by Wolfspeed, Inc.. SICFET N-CH 1700V 72A TO247-4. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case TO-247-4.

Datasheet Request a Quote

In Stock: 8,271

Specifications

17 parameters

Product Status	Not For New Designs
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	1700 V
Current - Continuous Drain (Id) @ 25°C	72A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	20V
Rds On (Max) @ Id, Vgs	59mOhm @ 50A, 20V
Vgs(th) (Max) @ Id	4V @ 18mA
Gate Charge (Qg) (Max) @ Vgs	188 nC @ 20 V

Vgs (Max)	+25V, -10V
Input Capacitance (Ciss) (Max) @ Vds	3672 pF @ 1000 V
FET Feature	-
Power Dissipation (Max)	520W (Tc)
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247-4L
Package / Case	TO-247-4
