C2M0045170D

In Stock: 4,630

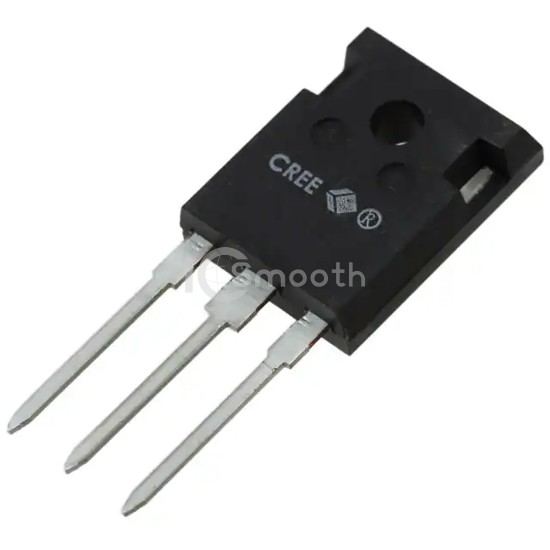

C2M0045170D - Wolfspeed, Inc. - Transistors - FETs, MOSFETs - Single
REF: C2M0045170D Wolfspeed, Inc.
C2M0045170D

Wolfspeed, Inc.

SICFET N-CH 1700V 72A TO247-3

C2M0045170D is a Transistors - FETs, MOSFETs - Single manufactured by Wolfspeed, Inc.. SICFET N-CH 1700V 72A TO247-3. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case TO-247-3.

Datasheet Request a Quote

In Stock: 4,630

Specifications

17 parameters
Product StatusNot For New Designs
FET TypeN-Channel
TechnologySiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)1700 V
Current - Continuous Drain (Id) @ 25°C72A (Tc)
Drive Voltage (Max Rds On, Min Rds On)20V
Rds On (Max) @ Id, Vgs70mOhm @ 50A, 20V
Vgs(th) (Max) @ Id4V @ 18mA
Gate Charge (Qg) (Max) @ Vgs188 nC @ 20 V
Vgs (Max)+25V, -10V
Input Capacitance (Ciss) (Max) @ Vds3672 pF @ 1000 V
FET Feature-
Power Dissipation (Max)520W (Tc)
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247-3
Package / CaseTO-247-3
