981HE0B4WA8H01

In Stock: 9,378

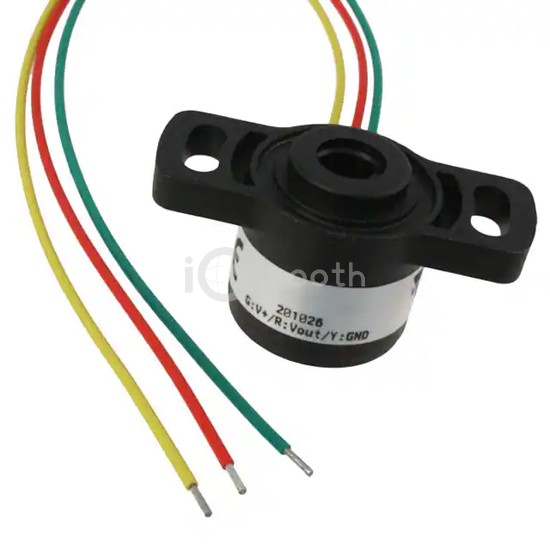

981HE0B4WA8H01 - Vishay Spectrol - Position Sensors - Angle, Linear Position Measuring
REF: 981HE0B4WA8H01 Vishay Spectrol
981HE0B4WA8H01

Vishay Spectrol

SENSOR ROTARY 360DEG WIRE LEADS

981HE0B4WA8H01 is a Position Sensors - Angle, Linear Position Measuring manufactured by Vishay Spectrol. SENSOR ROTARY 360DEG WIRE LEADS. Key specifications: mounting type Chassis Mount, operating temperature -45°C ~ 125°C, voltage - supply 4.5V ~ 5.5V, package / case Module.

Datasheet Request a Quote

In Stock: 9,378

Tiered Pricing USD
1+ $54.2100 —
5+ $50.0280 -8%
10+ $48.4690 -11%
30+ $46.2580 -15%
50+ $45.3282 -16%
100+ $44.1569 -19% BEST

Specifications

17 parameters
Product StatusActive
For MeasuringRotary Position
TechnologyHall Effect
Rotation Angle - Electrical, Mechanical0° ~ 360°, Continuous
Linear Range-
OutputAnalog Voltage
Output SignalClockwise Increase
Actuator TypeHole for Shaft
Linearity±0.5%
Resistance-
Resistance Tolerance-
Voltage - Supply4.5V ~ 5.5V
Mounting TypeChassis Mount
Termination StyleWire Leads
Operating Temperature-45°C ~ 125°C
Package / CaseModule
Supplier Device Package-
