6909-1002-030

In Stock: 55

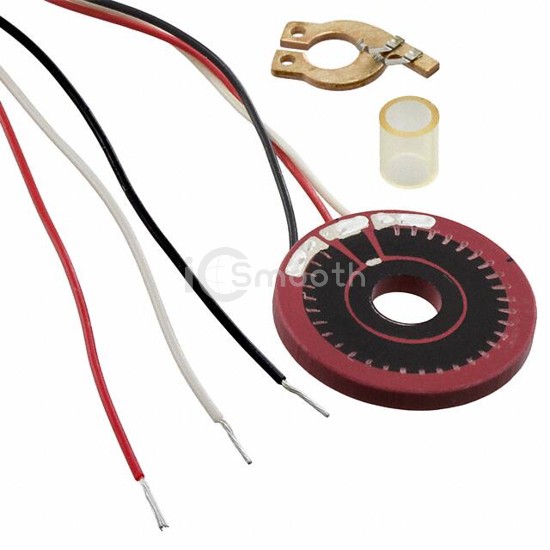

6909-1002-030 - TE Connectivity Measurement Specialties - Position Sensors - Angle, Linear Position Measuring
REF: 6909-1002-030 TE Connectivity Measurement Specialties
6909-1002-030

TE Connectivity Measurement Specialties

SENSOR ROTARY 340DEG WIRE LEADS

6909-1002-030 is a Position Sensors - Angle, Linear Position Measuring manufactured by TE Connectivity Measurement Specialties. SENSOR ROTARY 340DEG WIRE LEADS. Key specifications: mounting type Custom, operating temperature -65°C ~ 125°C, package / case Ring, Wire Leads, termination style Wire Leads.

Datasheet Request a Quote

In Stock: 55

Specifications

17 parameters
Product StatusObsolete
For MeasuringRotary Position
TechnologyResistive
Rotation Angle - Electrical, Mechanical0° ~ 340°, Continuous
Linear Range-
OutputResistive
Output SignalClockwise Increase
Actuator TypeExposed Element - Rotary
Linearity±0.5%
Resistance5 kOhms
Resistance Tolerance±10%
Voltage - Supply-
Mounting TypeCustom
Termination StyleWire Leads
Operating Temperature-65°C ~ 125°C
Package / CaseRing, Wire Leads
Supplier Device Package-
