34THES1BTA2S22

In Stock: 4

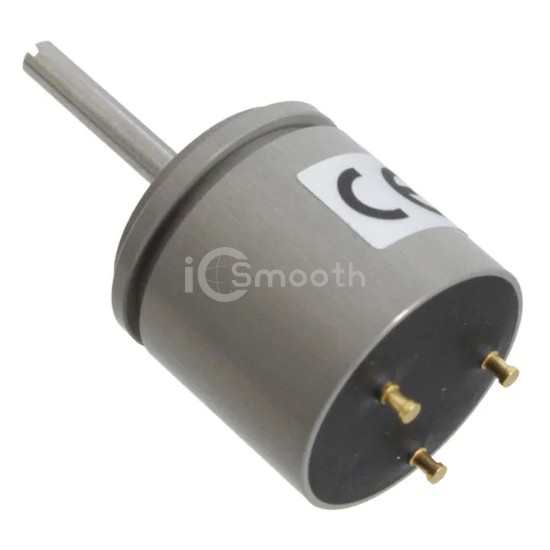

34THES1BTA2S22 - Vishay Spectrol - Position Sensors - Angle, Linear Position Measuring
REF: 34THES1BTA2S22 Vishay Spectrol
34THES1BTA2S22

Vishay Spectrol

SENSOR ROTARY 3600DEG SLD TURRET

34THES1BTA2S22 is a Position Sensors - Angle, Linear Position Measuring manufactured by Vishay Spectrol. SENSOR ROTARY 3600DEG SLD TURRET. Key specifications: mounting type Panel Mount, operating temperature -40°C ~ 85°C, voltage - supply 5V, package / case Module.

Datasheet Request a Quote

In Stock: 4

Tiered Pricing USD
1+ $319.8300 —
5+ $300.4780 -6%
10+ $293.2590 -8%
25+ $284.6148 -11% BEST

Specifications

17 parameters
Product StatusActive
For MeasuringRotary Position
TechnologyHall Effect
Rotation Angle - Electrical, Mechanical0° ~ 3600°, Continuous
Linear Range-
OutputAnalog Voltage
Output SignalClockwise Increase
Actuator TypeSlotted Shaft
Linearity±0.5%
Resistance-
Resistance Tolerance-
Voltage - Supply5V
Mounting TypePanel Mount
Termination StyleSolder Turret
Operating Temperature-40°C ~ 85°C
Package / CaseModule
Supplier Device Package-
