Name: SIP32434BDN-T1E4
Brand: Vishay Siliconix
SKU: SIP32434BDN-T1E4
Price: 1.42 USD
Availability: InStock

REF: SIP32434BDN-T1E4 Vishay Siliconix

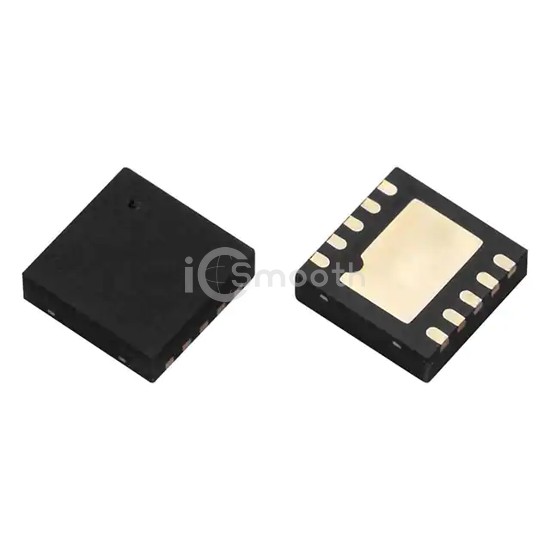

SIP32434BDN-T1E4

Vishay Siliconix

6 A, 33 M, 2.8 V TO 23 V,EFUSE W

SIP32434BDN-T1E4 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Vishay Siliconix. 6 A, 33 M, 2.8 V TO 23 V,EFUSE W. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case 10-VFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,549

Tiered Pricing USD

1+ $1.4200 —

10+ $1.0360 -27%

25+ $0.9392 -34%

100+ $0.8330 -41%

250+ $0.7824 -45%

500+ $0.7519 -47%

1,000+ $0.7268 -49% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	2.8V ~ 23V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	6A
Rds On (Typ)	33mOhm
Input Type	Non-Inverting
Features	Auto Restart, Power Good, Slew Rate Controlled
Fault Protection	Current Limiting (Adjustable), Over Temperature, Over Voltage, Short Circuit, UVLO
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	10-DFN (3x3)
Package / Case	10-VFDFN Exposed Pad
