Name: VNL5090N3TR-E
Brand: STMicroelectronics
SKU: VNL5090N3TR-E
Price: 1.09 USD
Availability: InStock

REF: VNL5090N3TR-E STMicroelectronics

VNL5090N3TR-E

STMicroelectronics

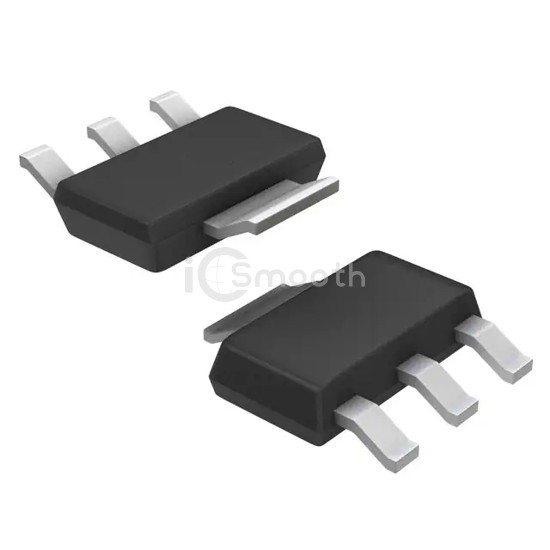

IC PWR DRIVER N-CHAN 1:1 SOT223

VNL5090N3TR-E is a PMIC - Power Distribution Switches, Load Drivers manufactured by STMicroelectronics. IC PWR DRIVER N-CHAN 1:1 SOT223. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - load 36V (Max), package / case TO-261-4, TO-261AA.

Datasheet Request a Quote

In Stock: 12,715

Tiered Pricing USD

1+ $1.0900 —

10+ $0.7870 -28%

25+ $0.7116 -35%

100+ $0.6279 -42%

250+ $0.5880 -46%

500+ $0.5640 -48% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	Low Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	36V (Max)
Voltage - Supply (Vcc/Vdd)	-

Current - Output (Max)	13A
Rds On (Typ)	90mOhm (Max)
Input Type	Non-Inverting
Features	Auto Restart
Fault Protection	Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-223
Package / Case	TO-261-4, TO-261AA
