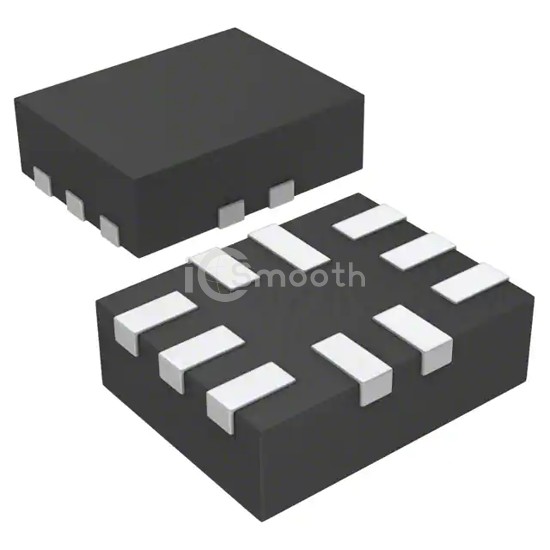

Name: DG9636DN-T1-E4
Brand: Vishay Siliconix
SKU: DG9636DN-T1-E4
Price: 0.63 USD
Availability: InStock

REF: DG9636DN-T1-E4 Vishay Siliconix

DG9636DN-T1-E4

Vishay Siliconix

IC SWITCH DUAL SPST 10QFN

DG9636DN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH DUAL SPST 10QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 10-UFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 6,949

Tiered Pricing USD

3,000+ $0.6278 —

6,000+ $0.6139 -2%

9,000+ $0.6069 -3%

15,000+ $0.5991 -5% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	110Ohm
Channel-to-Channel Matching (ΔRon)	4Ohm
Voltage - Supply, Single (V+)	2.7V ~ 12V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	70ns, 55ns

-3db Bandwidth	720MHz
Charge Injection	23.5pC
Channel Capacitance (CS(off), CD(off))	2pF
Current - Leakage (IS(off)) (Max)	1nA
Crosstalk	-67dB @ 10MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	10-UFQFN
Supplier Device Package	10-miniQFN (1.4x1.8)
