Name: DG9454EEN-T1-GE4
Brand: Vishay Siliconix
SKU: DG9454EEN-T1-GE4
Price: 1.47 USD
Availability: InStock

REF: DG9454EEN-T1-GE4 Vishay Siliconix

DG9454EEN-T1-GE4

Vishay Siliconix

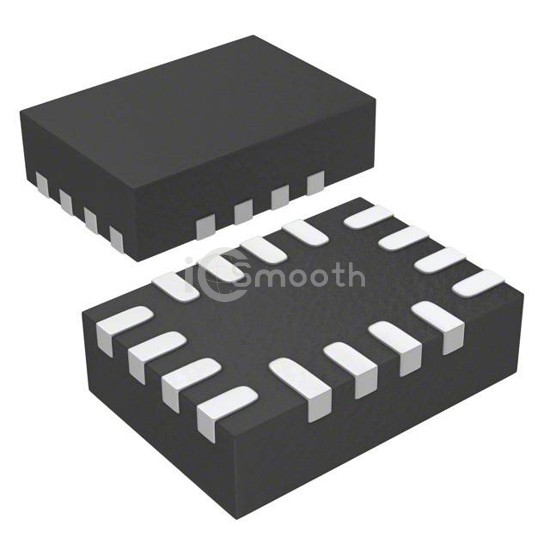

IC SWITCH/MUX SPDT 16MINIQFN

DG9454EEN-T1-GE4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH/MUX SPDT 16MINIQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-UFQFN, number of circuits 3.

Datasheet Request a Quote

In Stock: 553

Tiered Pricing USD

1+ $1.4700 —

10+ $1.0690 -27%

25+ $0.9696 -34%

100+ $0.8606 -41%

250+ $0.8085 -45%

500+ $0.7772 -47%

1,000+ $0.7514 -49% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	3
On-State Resistance (Max)	103Ohm
Channel-to-Channel Matching (ΔRon)	1.24Ohm
Voltage - Supply, Single (V+)	3V ~ 16V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	110ns, 91ns

-3db Bandwidth	356MHz
Charge Injection	5.84pC
Channel Capacitance (CS(off), CD(off))	3.1pF, 4pF
Current - Leakage (IS(off)) (Max)	1nA
Crosstalk	-73dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	16-UFQFN
Supplier Device Package	16-miniQFN (1.8x2.6)
