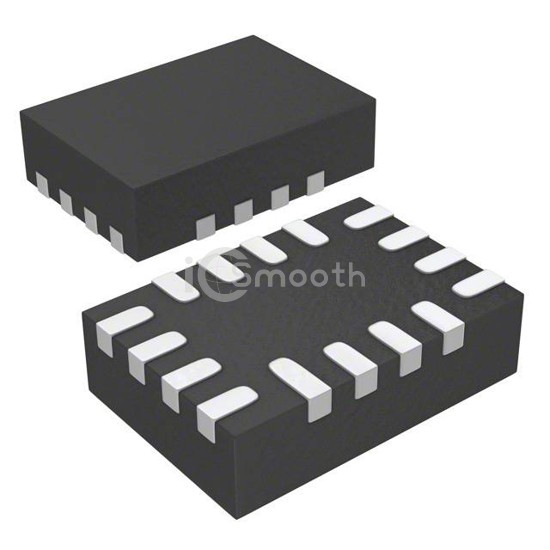

Name: DG9453EN-T1-E4
Brand: Vishay Siliconix
SKU: DG9453EN-T1-E4
Availability: InStock

REF: DG9453EN-T1-E4 Vishay Siliconix

DG9453EN-T1-E4

IC SWITCH DUAL SPST 16QFN

DG9453EN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH DUAL SPST 16QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-WFQFN, number of circuits 3.

Datasheet Request a Quote

In Stock: 9,840

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	3
On-State Resistance (Max)	105Ohm
Channel-to-Channel Matching (ΔRon)	4Ohm
Voltage - Supply, Single (V+)	2.7V ~ 12V
Voltage - Supply, Dual (V±)	±2.5V ~ 5V
Switch Time (Ton, Toff) (Max)	185ns, 130ns

-3db Bandwidth	270MHz
Charge Injection	0.79pC
Channel Capacitance (CS(off), CD(off))	1pF, 9pF
Current - Leakage (IS(off)) (Max)	1nA
Crosstalk	-90dB @ 100kHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-WFQFN
Supplier Device Package	16-miniQFN (1.8x2.6)
