Name: DG9422EDV-T1-GE3
Brand: Vishay Siliconix
SKU: DG9422EDV-T1-GE3
Price: 1.61 USD
Availability: InStock

REF: DG9422EDV-T1-GE3 Vishay Siliconix

DG9422EDV-T1-GE3

Vishay Siliconix

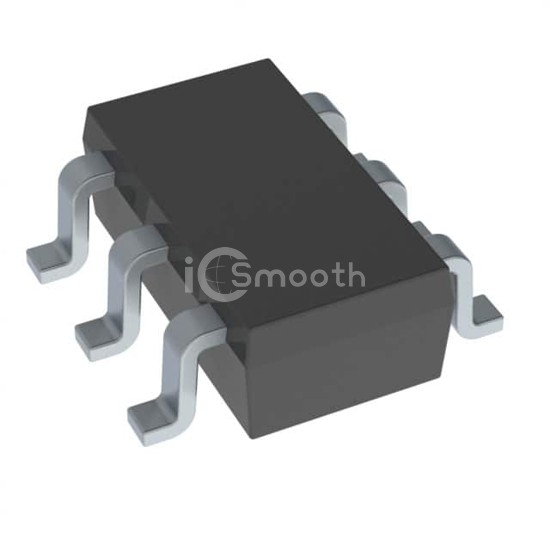

IC ANALOG SWITCH 6-TSOP

DG9422EDV-T1-GE3 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC ANALOG SWITCH 6-TSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case SOT-23-6 Thin, TSOT-23-6, number of circuits 1.

Datasheet Request a Quote

In Stock: 13,713

Tiered Pricing USD

1+ $1.6100 —

10+ $1.1770 -27%

25+ $1.0696 -34%

100+ $0.9508 -41%

250+ $0.8942 -44%

500+ $0.8601 -47%

1,000+ $0.8320 -48% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPST - NO
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	1
On-State Resistance (Max)	3.2Ohm
Channel-to-Channel Matching (ΔRon)	-
Voltage - Supply, Single (V+)	3V ~ 16V
Voltage - Supply, Dual (V±)	±3V ~ 8V
Switch Time (Ton, Toff) (Max)	36ns, 22ns

-3db Bandwidth	161MHz
Charge Injection	19pC
Channel Capacitance (CS(off), CD(off))	34pF, 36pF
Current - Leakage (IS(off)) (Max)	1nA
Crosstalk	-
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	SOT-23-6 Thin, TSOT-23-6
Supplier Device Package	6-TSOP
