Name: DG9422DV-T1-E3
Brand: Vishay Siliconix
SKU: DG9422DV-T1-E3
Price: 0.70 USD
Availability: InStock

REF: DG9422DV-T1-E3 Vishay Siliconix

DG9422DV-T1-E3

Vishay Siliconix

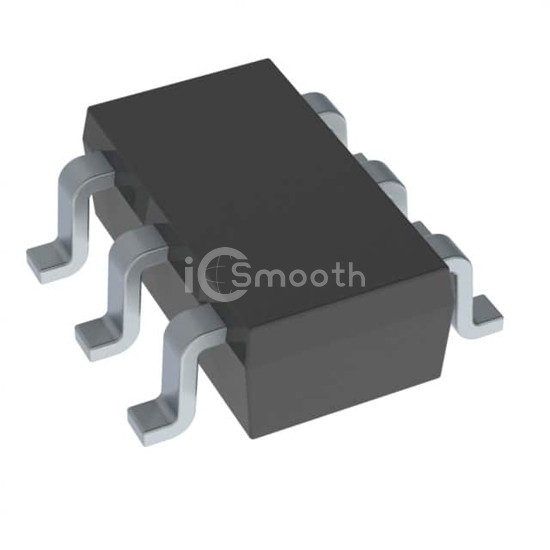

IC SWITCH SNGL SPST 5V 6TSOP

DG9422DV-T1-E3 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH SNGL SPST 5V 6TSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case SOT-23-6 Thin, TSOT-23-6, number of circuits 1.

Datasheet Request a Quote

In Stock: 4,168

Tiered Pricing USD

3,000+ $0.6957 —

6,000+ $0.6805 -2%

9,000+ $0.6729 -3%

15,000+ $0.6645 -4% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPST - NO
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	1
On-State Resistance (Max)	3Ohm
Channel-to-Channel Matching (ΔRon)	-
Voltage - Supply, Single (V+)	2.7V ~ 12V
Voltage - Supply, Dual (V±)	±2.7V ~ 6V
Switch Time (Ton, Toff) (Max)	45ns, 47ns

-3db Bandwidth	-
Charge Injection	43pC
Channel Capacitance (CS(off), CD(off))	31pF, 30pF
Current - Leakage (IS(off)) (Max)	1nA
Crosstalk	-
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	SOT-23-6 Thin, TSOT-23-6
Supplier Device Package	6-TSOP
